Impregnated Activated Carbon

Brief Description
Impregnated Activated Carbon is manufactured exclusively for corrosive environments. This media consists of extruded cylindrical and/or porous pellets. The pellets are composed of carbon and other binders suitably impregnated for the removal of acid gases. The impregnate is applied during pellet formation and is distributed uniformly throughout the pellet thereby allowing uniform chemical reaction.

Target contaminants include:
 Formaldehyde
, Hydrogen Sulfide (H2S)
, Aldehydes, Organic Acids, Sulfur Dioxide (SO2)

Engineered Oxidant Media

Brief Description
Engineered Oxidant Media is manufactured as spherical, porous pellets composed of a combination of activated alumina, binders, and 8% potassium permanganate. The potassium permanganate is applied uniformly during pellet formation and distributed throughout the pellet to create a completely homogenous particle thus ensuring complete media utilization.
This media utilizes a chemisorption process thereby removing the contaminant gas by chemical reaction. During the chemisorption process, the contaminant gas is trapped within the pellet whereby oxidation occurs and converts the contaminant(s) into harmless compounds. Oxidation is an irreversible process thereby mitigating the possibility of desorption of the gases back into the airstream.

Target contaminants include:
 Formaldehyde
, Hydrogen Sulfide (H2S)
, Aldehydes, Organic Acids, Sulfur Dioxide (SO2)

Virgin Activated Carbon

Brief Description
Virgin Activated Carbon consists of extruded cylindrical, porous pellets formed from virgin high quality bituminous coal. This media removes contaminant gases by means of physical adsorption. In this process, contaminant gases are held within the highly porous structure of the carbon pellets. The media is designed to efficiently remove gaseous contaminants from airstreams where multiple gases are present such as, volatile organic compounds (VOC’s), human bioeffluent emissions, hydrocarbons and nitrogen oxides in automobile & diesel exhaust, and chorine to name a few.

Potassium Carbon Blend

Brief Description
Potassium Carbon Blend is produced from an equal volumetric mix of engineered oxidant media and extruded activated carbon. PC Blend is ideally suited for capturing industrial gases such as lower weight aldehydes, organic acids, VOC’s, hydrogen sulfide (H2S), sulfur dioxide (SO2), formaldehyde, nitric oxide and hydrocarbons. Manufactured of spherical and porous pellets, the engineered oxidant media is composed of a combination of activated alumina, binders and 8% potassium permanganate. The carbon is manufactured of pelletized activated carbon composed of high-quality virgin substrates. This blended media combination provides optimum adsorption, absorption, and oxidation of various gaseous contaminants.

Wide Spectrum Triple Blend

Brief Description
Wide Spectrum Triple Blend is produced from an equal volumetric mix of Engineered Oxidant, Impregnated Carbon, and Virgin Activated Carbon to produce a single media capable of neutralizing numerous contaminants in a single pass. Ideally suited for bulk-fill trays, modules and smaller packaged systems with limited ability to use multiple medias in multiple pass configurations for complex gas streams.

WIRE SUPPORT PANELS (WSP)

Brief Description
The synthetic Wire Support Panel (WSP) uses graduated density media sewn around a 9-gauge welded wire to provide a self-sealing perimeter and prevent air-bypass.

• Internal welded wire frames prevents filter collapse or degradation in high humidity or high dust loading conditions.
• Single Ply WSP’s are designed for light to moderate applications such as those used on fancoils or heat pumps.
• 2-Ply MERV 7 WSP’s are used in moderate to heavy dust loading conditions. Suited to anywhere a conventional 2" pre-filter is used at present.
• 3-Ply MERV 8 WSP’s are used in moderate to heavy dust loading conditions on their own or as pre-filters to high efficiency secondary filters.
• Self sealing design
• Reduced storage and disposal versus cardboard framed filters

WIRE SUPPORT CUBES (WSC)

Brief Description The synthetic Wire Support Cube (WSC) utilizes a multiple surface, graduated density media sewn around a 9-gauge wire to provide a self-sealing perimeter and prevent air-bypass. The WSC is designed to provide mid efficiency and high dust holding capacity to prevent collapse in high humidity and/or high dust loading conditions common to municipal and industrial filtration systems.

The WSC is offered in a variety of different medias; single ply, 2-ply or 3-ply construction in depths from 12 inches to 24 inches.

PLEATED PANEL FILTERS

Brief Description
Available in 1", 2" and 4" depths in MERV 8, MERV 10 and MERV 13 efficiency

Although industry standard in pleated panel filters is MERV 8 efficiency, for reduced labour, material and landfill waste, we highly recommend the heavy duty MERV 10 pleat as this product is constructed with a welded wire grid on the air leaving side of the pleat pack to maintain integrity in high dust load or humid operating conditions for extended service life and reduced cost of ownership.

POCKET FILTERS

Brief Description
Available in non-shedding fiberglass or synthetic construction, standard and special sizes, depths from 12" to 36", efficiencies available are MERV 11, MERV 13, MERV 14 and MERV 15.

RIGID CELL

Brief Description
The Rigid Cell is commonly used as a secondary filter and available in 4”, 6” and 12” depths made of either non-shedding fiberglass or synthetic medias.

• MERV 11, MERV 13 and MERV 14 efficiencies and constructed of aluminized steel
• Can be recycled whereby only the spent filter media is sent to landfill
• Commonly used in either side access housings or front access holding frames using a wide variety of pre-filters depending on application and site requirements

FP MINI PLEAT

Brief Description
The FP Mini Pleat design incorporates 193 square feet of high efficiency media within a standard 24x24x12 filter utilizing the 4V configuration. This extended media surface area creates a lower resistance to air flow resulting in reduced energy consumption and extended life. The unique, inherently stable 4V filter design distributes air evenly across the filter. It is rated at continuous airflow rates up to 3000 CFM.

• Available in MERV 11, MERV 14, MERV 15 and MERV 16 efficiencies
• Constructed of wet-laid micro glass media to eliminate downstream dust and fiber shedding
• Plastic frame creates an exceptionally strong yet lightweight filter
• Low initial pressure drop and high dust holding capacity
• Dual direction media for front or reverse mount installations
• Built-in handle eases transportation and installation
• Longer filter life with lower replacement and maintenance costs
• Sustainable component for LEED/Green Building initiative

HVAC & PROCESS FILTER HOUSINGS

Brief Description

• Wide range of filter housings available from 500 CFM to over 40,000 CFM
• Galvanized Steel, Double Wall Aluminum or 304 Stainless Steel
• Single stage particulate, dual stage particulate, single or multi-stage carbon, HEPA, Bag-In Bag-Out (BIBO) containment housings and isolation dampers.
• Numerous options available and we can customize to meet specific site requirements. Contact us today to discuss your project.

DRUM SCRUBBERS

Brief Description
The Drum Scrubber is designed for wastewater treatment facilities, pump stations, lift stations, wet wells, force mains, and at the wastewater treatment plant. Constructed of corrosion-resistant materials and requiring essentially no maintenance, the Drum Scrubber can be used in remote outdoor areas where high levels of acid gases are present. The scrubber consists of layered beds of chemical media with optional add-ons such as silencers, mist eliminators, and rain hoods. Sizes range from 200 CFM to 1000 CFM.

DEEP BED SCRUBBER (DBS)

Brief Description
The Deep Bed Scrubber (DBS) is a highly effective, bulk media scrubber designed for controlled environments with medium-to-high contaminant gas levels. The DBS neutralizes the gases corrosive effects to meet stringent air quality standards set by the International Society of Automation (ISA). It comes in a wide range of sizes and numerous options. Unit construction of Double Wall Aluminum or Single Wall 304 or 316 Stainless Steel. Sizes range from 250 CFM to 30,000 CFM.

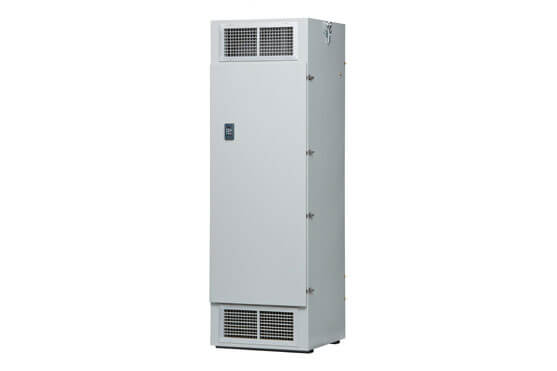

POSITIVE PRESSURIZATION UNIT (PPU)

Brief Description
The Positive Pressurization Unit is a self-contained air scrubbing system designed to provide pressurized and/or recirculated air, free of corrosive gases. It is ideally suited for removing low concentration air contaminants from controlled environments containing sensitive computer electronics and electrical equipment. Sizes range from 250 CFM to 4000 CFM.
